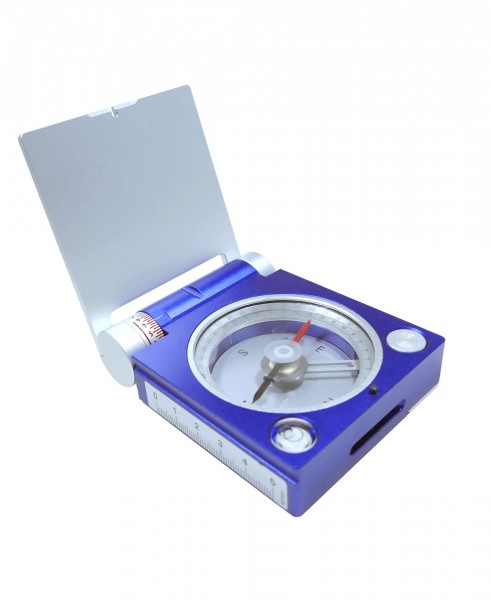

The Breithaupt Gekom Pro is a professional stratum compass with a hinge inclinometer for fast, accurate structural measurements in the field.
Stratum measurements can be taken according to the method of Professor Dr. Clar - two-circle compass, azimuth of dip and angle of dip of plains or linear features can be determined in one single operation.
Specifications:
- Vertical circle (dip measuring) with 5° graduation, reading by estimation 1°, visible from above, the azimuth of dip and angle of dip can be read at a glance
- Dip measuring range 270°
- Automatic arresting compass needle when needle is not in use
- Azimuth circle with 2° graduation, 1° by estimation
- Inclination adjustable
- Declination adjustment ±60°
- Circular spirit level
- Waterproof high-quality one-piece housing made of light metal
- Case included
- Dimensions (closed): 72mmx90mmx21,5mm(WxLxH)
- Weight: 270g
- Made in Germany
