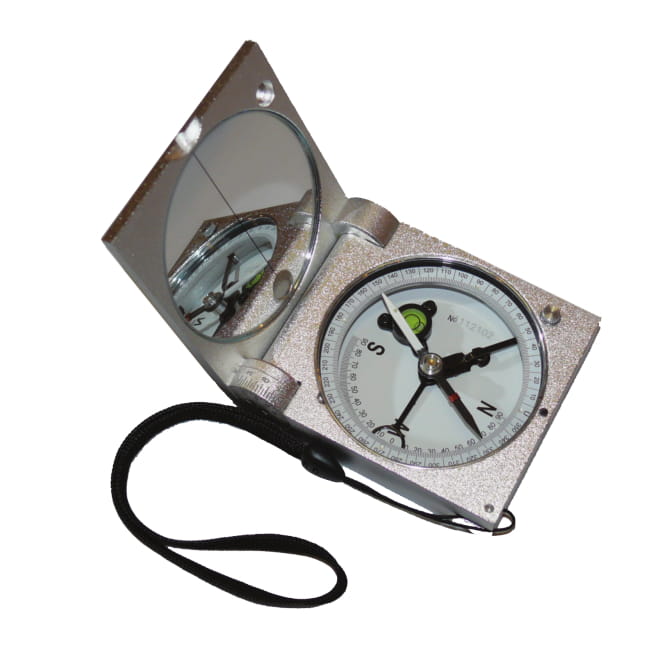

Reliable structural geology compass for precise angle and orientation measurements.
This especially developed geologist's compass meets all your demands at a favourable price! Essentially it's been built as a copy of the Freiberg Compass when your budget doesn't stretch to a compass of that quality. Like the Freiberger, it facilitates the reading of dip and strike in one operation by a vertical circle at the lid hinge.
Technical Specifications:
-
Pendular clinometer (90°- 0°- 90°) for dip measurement
-
The initial oscillation of the needle can be accelerated by arresting
-
Circular level, mirror, front and rear sight
-
0°-360°, scale value 1° (adjustable circle graduation and needle), vertical circle graduation 5°, engraved exterior scale
-
Housing: Aluminum
-
Size: 80 x 65 x 20 mm
-

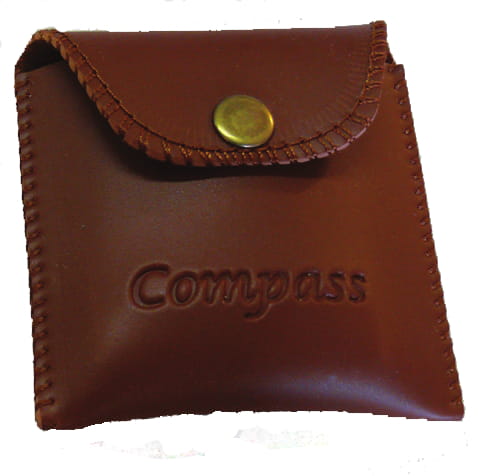

Weight: ca. 235 g (leather pouch included)
Applications:
-
Can be used for route surveying, for the survey of natural and artificial openings above and below ground
-
Surveying of open pit or underground workings
-
Transfer of geological data onto maps and plans
-
Staking out of claims and sites
-
General field-geological work
-
Special structural-geological, deposit-tectonic, and engineering-geological rock mechanical work
-
Rock work as well as moderate-accuracy surveying
