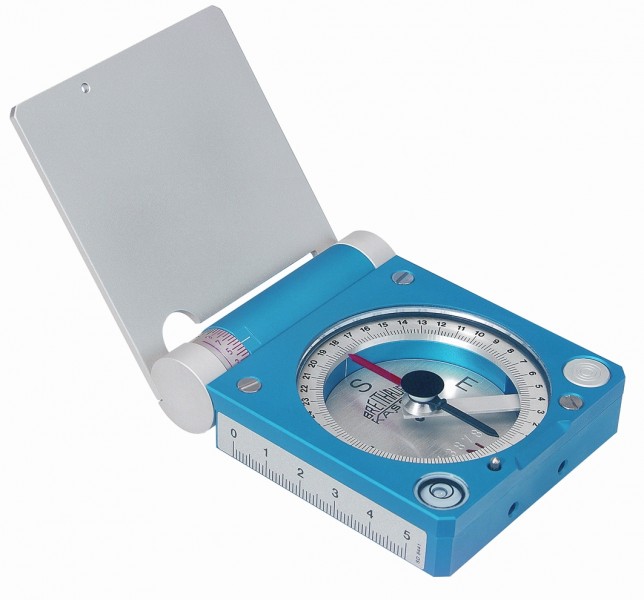

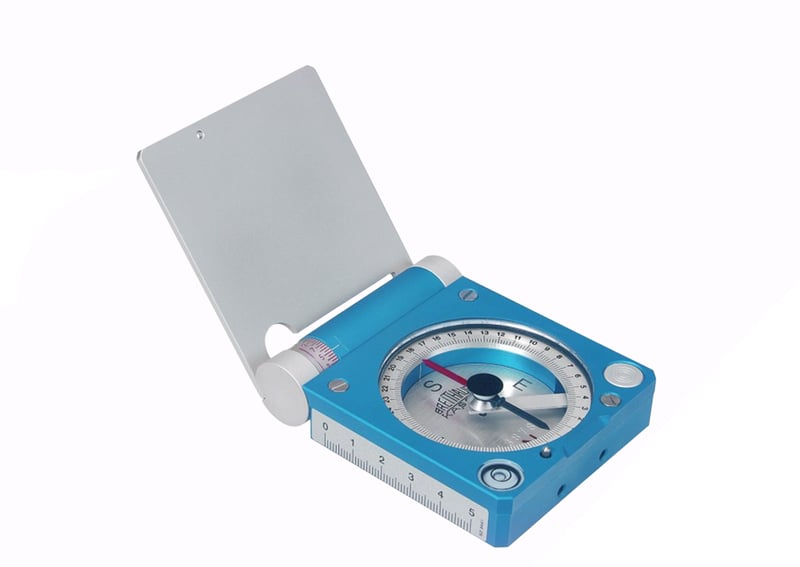

The Cocla is Breithaupt's top-of-the-line stratum compass, intended for performing geological, geophysical, mining and tectonic measurements.
Breithaupt has been manufacturing magnetic compasses in Germany since 1762, and the Cocla is their top of the range stratum compass. Designed in close cooperation with Professor Dr. Clar for geological, geophysical, mining, tectonic and rock mechanical applications, the Cocla allows for azimuth and angle of dip measurements to be taken in one single operation.
The large circular opening in the compass housing contains the graduated circle, the magnetic needle with circular magnet, and the copper dampening pot. At its base the housing is closed by a bottom plate of transparent, unbreakable plastic. This design allows for measurements to be taken and read from above the head.
Specifications:
- Compass circle diameter: 50mm
- Graduation interval: 1º
- Accuracy: <0,1º
- Numbering continuous from: 10º to 10º
- Declination adjustment: ±30º
- Vertical circle diameter: 25mm
- Graduation interval: 5º
- Estimation to: 1º
- Graduation range quadrantal: 235º
- Numbering from: 20º to 20º
- Circular level: 30'/2mm
- Tracing edge: 60mm
- Dimensions (closed compass): 74x96x25mm
- Weight: 275g
