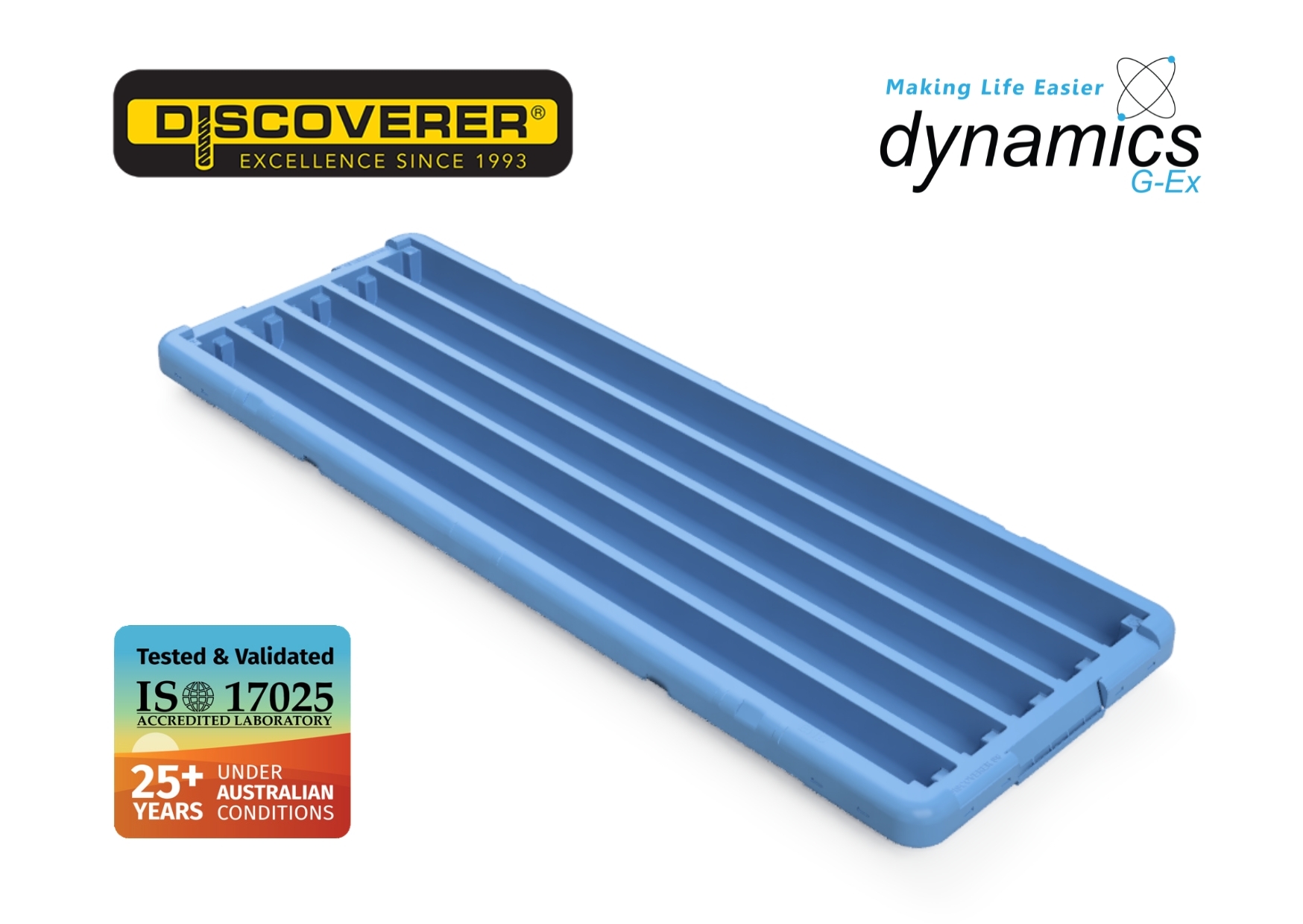

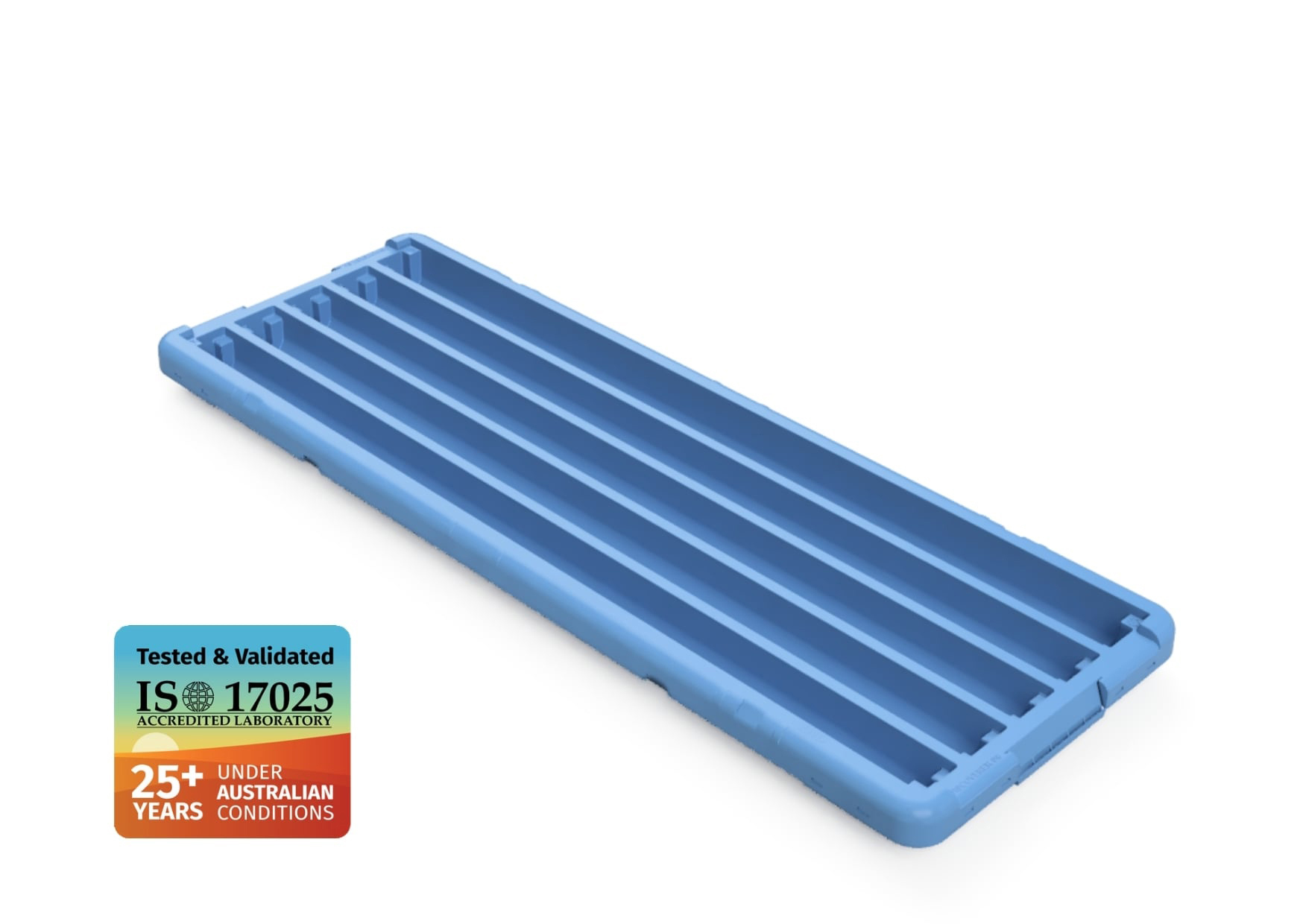

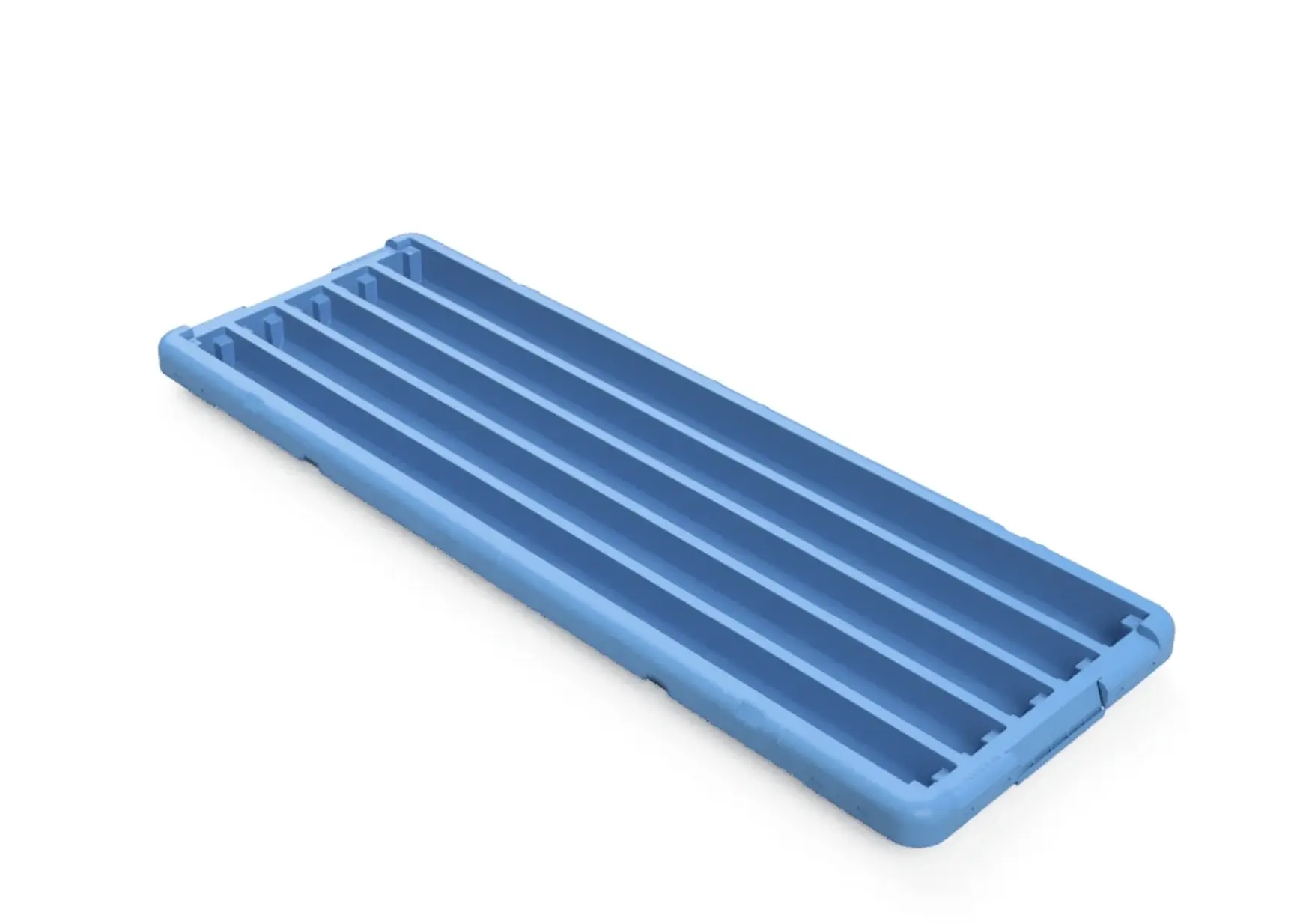

The most ergonomic core tray in the world, with unique handles and secure transport features.
The Series 6 tray is our latest version which has been developed in partnership with industry and tested to be our best ever, packed with features that make core handling easier and safer.
Are you in North America? If so, check out our Series 6 2ft Core Box here.

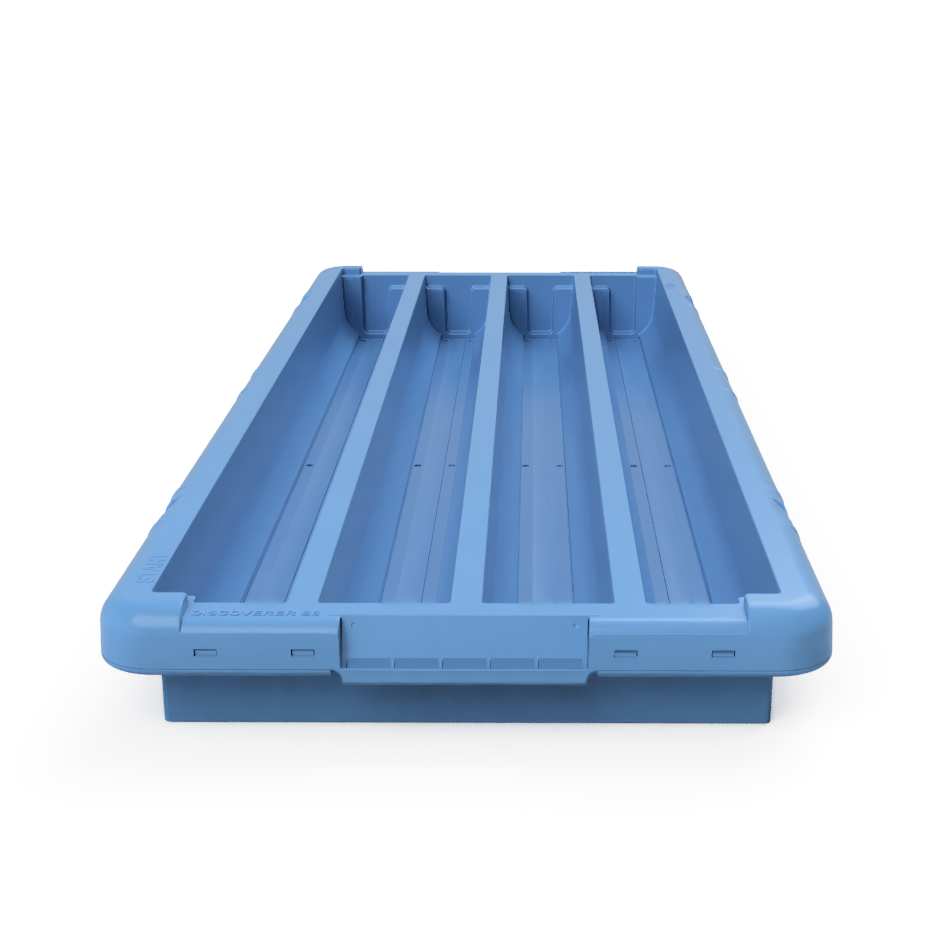

Unique Ergonomic handlesNew for the S6 are ergonomically designed handles which makes it the safest and most comfortable core tray in the world! They are placed in each corner and create a larger, more easy to grip lifting point that reduce the risk of injury.
|
|
High strength and proven durabilityMade from a polymer with an ISO certified 25+ year life span. On top of this the Discoverer range of trays has been manufactured using more plastic, which may add a few extra grams to the empty weight, but makes for a strong, rigid tray when filled with core. |
|

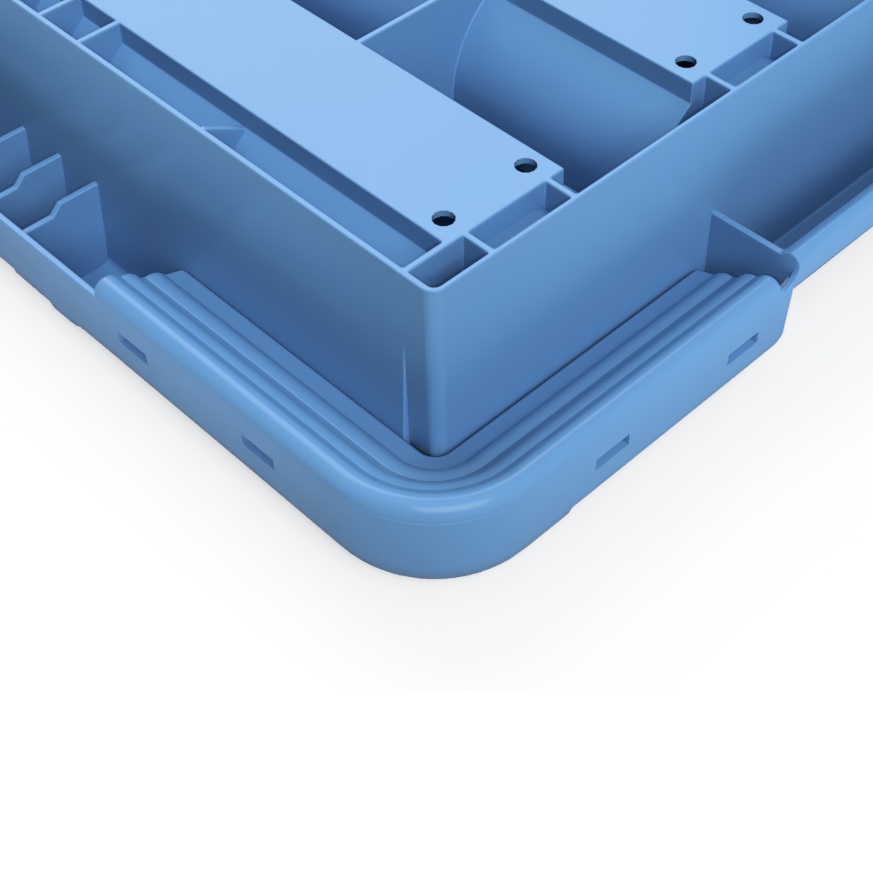

Stable stackingOuter edges have been designed to improve nesting and stacking. The unique design means that the trays stack perfectly on top of each other without the tray above touching the core below. |
|

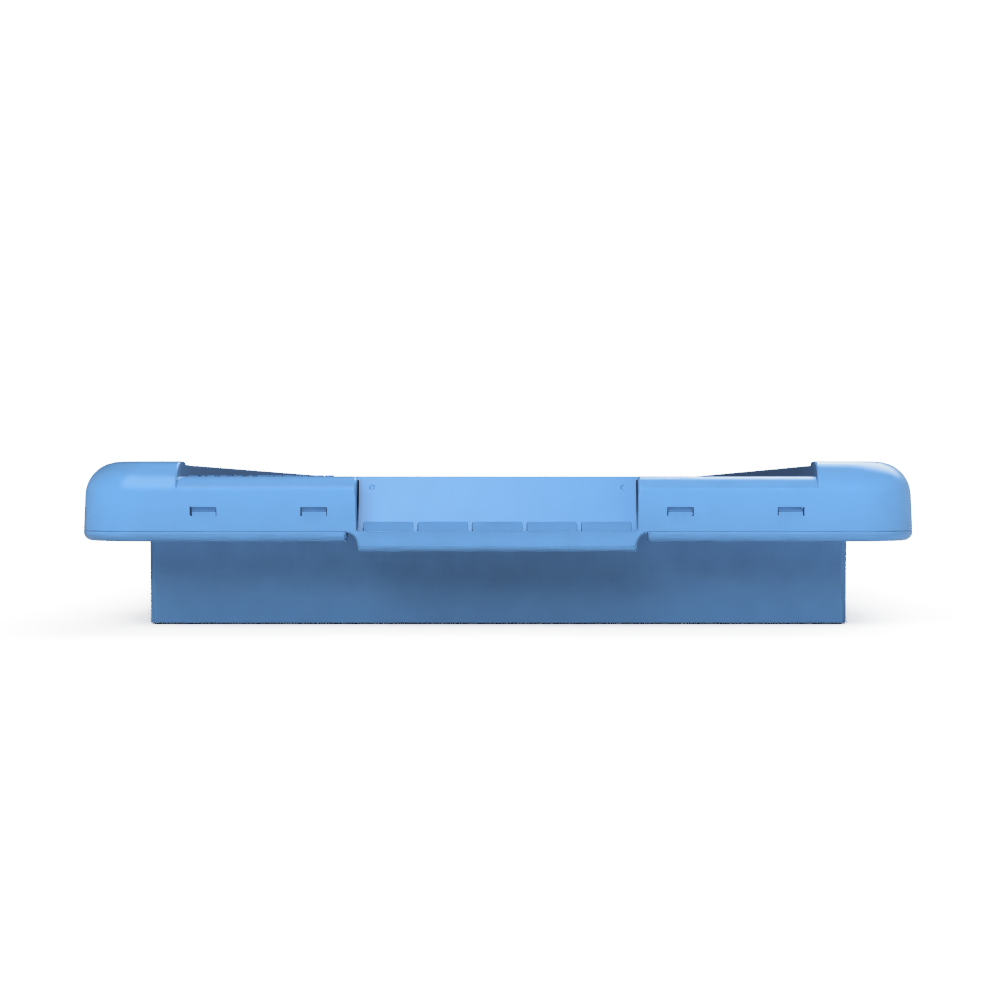

Secure transit and easy handlingStrapping locators with reinforced fins behind the lip that ensure trays can be tied down securely for transit. And then when on the roller racking the tray has a flat bottom that ensures smooth movement across the rollers and ball transfer tables. |
|
High protectionThe Discoverer Core Tray Lid is made from a single-piece molded recycled plastic with integrated clips that hold it firmly on the tray. The design allows every core tray to be sealed with its own individual lid, and then stacked on top of each other stably.
|
|

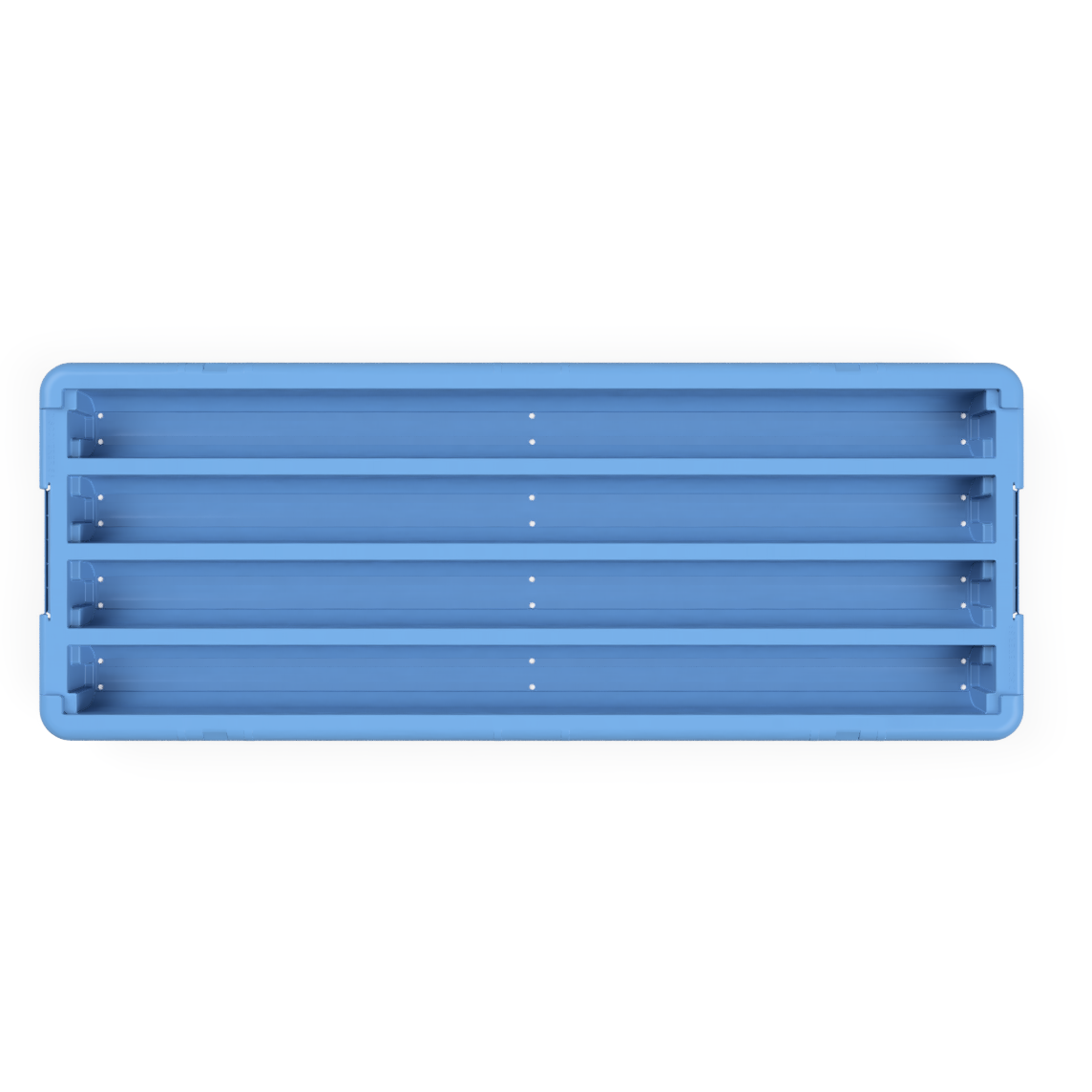

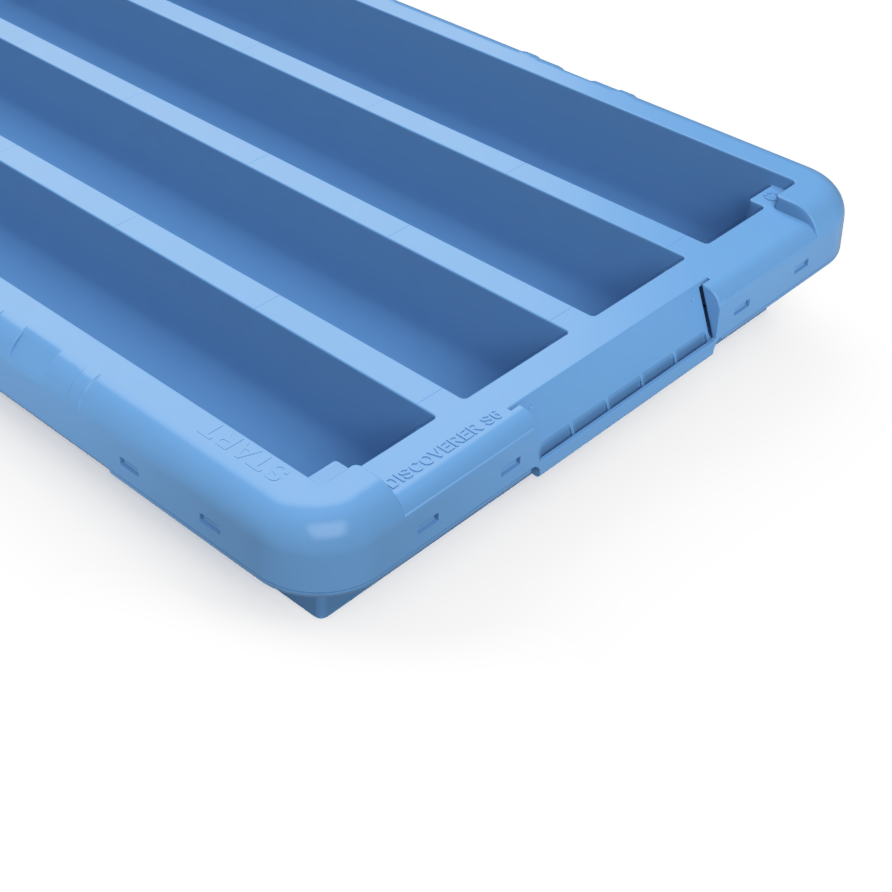

Core scanning and logging featuresThe rigid rows make for a perfect platform for scanning, and the design allows the scanning head to capture an entire length of core. The bold START indicator ensures the driller starts the core run in the correct sequence. |
|
Product & Pallet Specification:
| Product | Tray size | Channel Diameter | Core capacity per tray | Weight in Tray | Weight per Pallet (Incl Pallet) |
| NQ S6 | 1095 x 388 x 66mm | 52mm | 5 metres | 2.1kg | 265kg (total pallet weight) |
| HQ S6 | 1095 x 388 x 78mm | 65.2mm | 4 metres | 2.25kg | 225kg (total pallet weight) |
| PQ S6 | 1095 x 388 x 99mm | 86mm | 3 metres | 2.3kg | 190kg (total pallet weight) |
Pallet Quantity:
Series 6 NQ
-
Truck - 117 (2320mm High)
-
Standard Container – 120 (2368mm High)
-
High Cube Container – 129 (2550mm High)
Series 6 HQ
-
Truck - 96 (2300mm High)
-
Standard Container – 99 (2370mm High)
-
High Cube Container – 105 (2520mm High)
Series 6 PQ
-
Truck - 75 (2360mm High)
-
Standard Container – 75 (2360mm High)
-
High Cube Container – 81 (2550mm High)
