Sharp, consistent, full-tray images of every RC chip sample, captured in a single click.

Five cameras. One click.

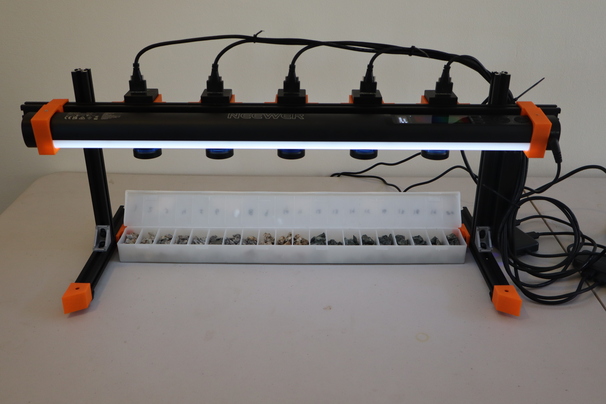

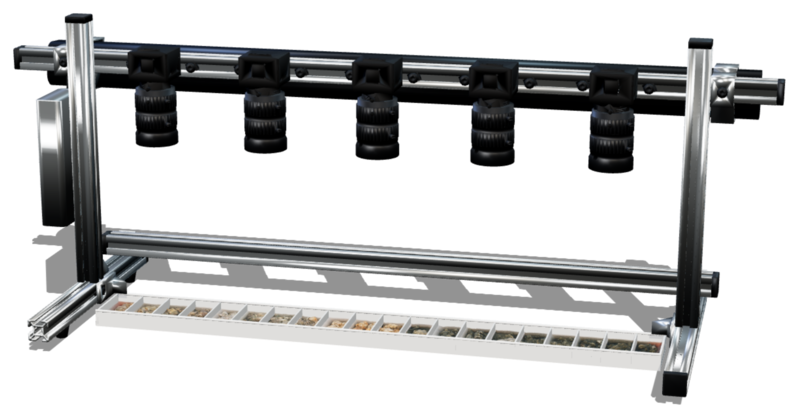

FastShot RC automates chip tray photography. A fixed array of five 20 MP cameras captures the whole tray at once. The software then stitches the shots into one seamless, colour-consistent image, ready for logging in 3 seconds.

Five frames. One seamless image

Every compartment , stitched into one colourconsistent  picture of the whole tray and ready for  logging in 3 seconds. Zoom into any cell and the detail is still there.

Catalogued the moment it’s captured.

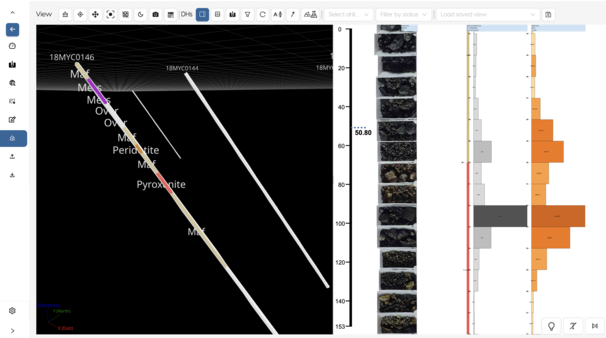

Each image is automatically catalogued in FastGeo with its hole ID and depth interval. It can also go straight to Imago through a direct Imago Connect upload, so your images land in whichever system your team already uses.

Features

• Patented five-camera fixed array for macrolevel detail on every chip
• Locked exposure and calibrated lighting, so colour and brightness match from tray to tray and hole to hole
• Single-click capture and automatic stitching through the FastGeo Windows app
• Images are named by hole ID and depth, so there’s no manual renaming or sorting
• Direct upload to Imago via Imago Connect,  with no manual export or reimport



Camera specifications

• 20 MP sensor with USB 3.0
• 16 mm C-mount lens (5472 × 3648 px)
• Fixed position Lens with Patented array
