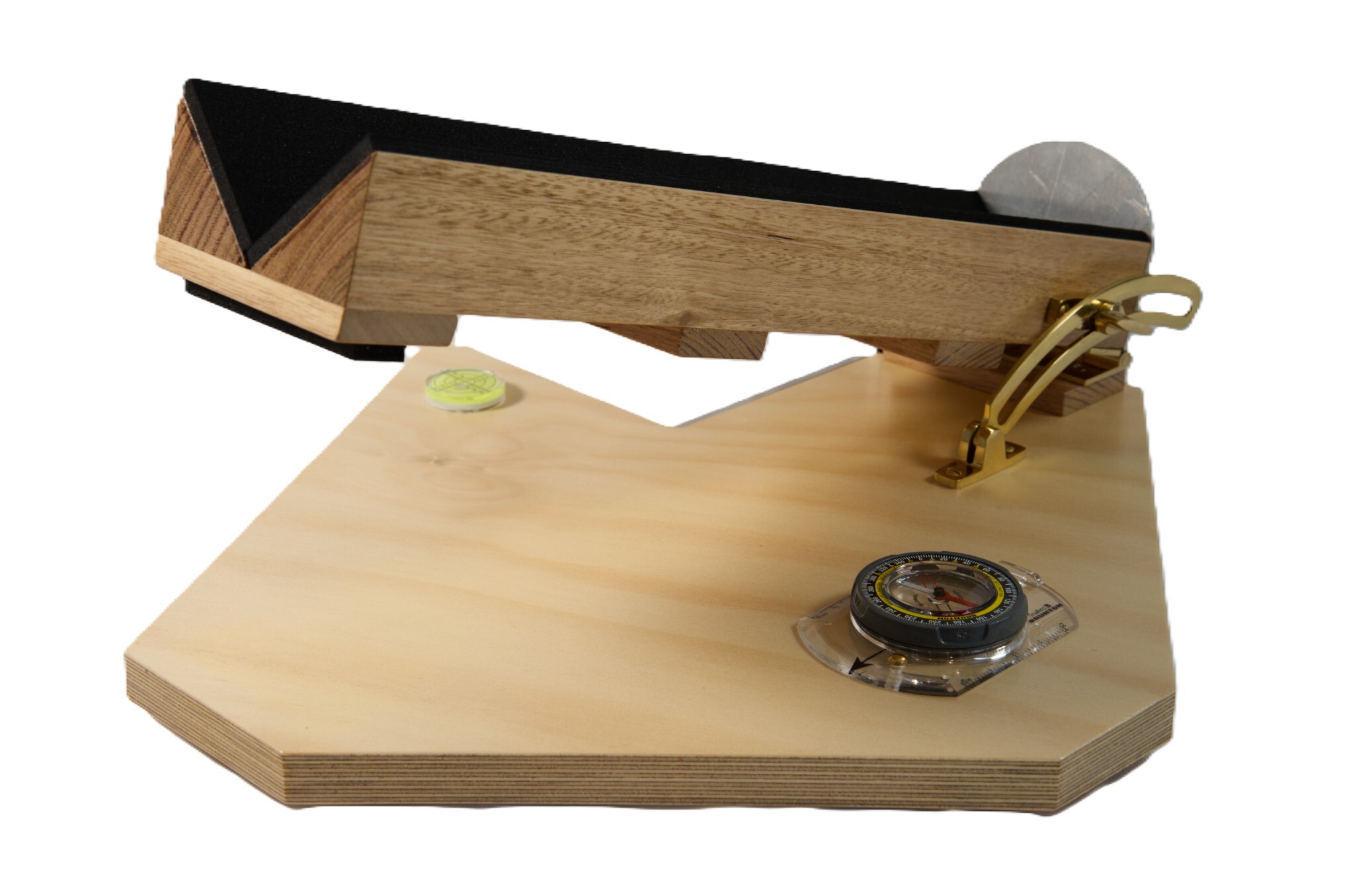

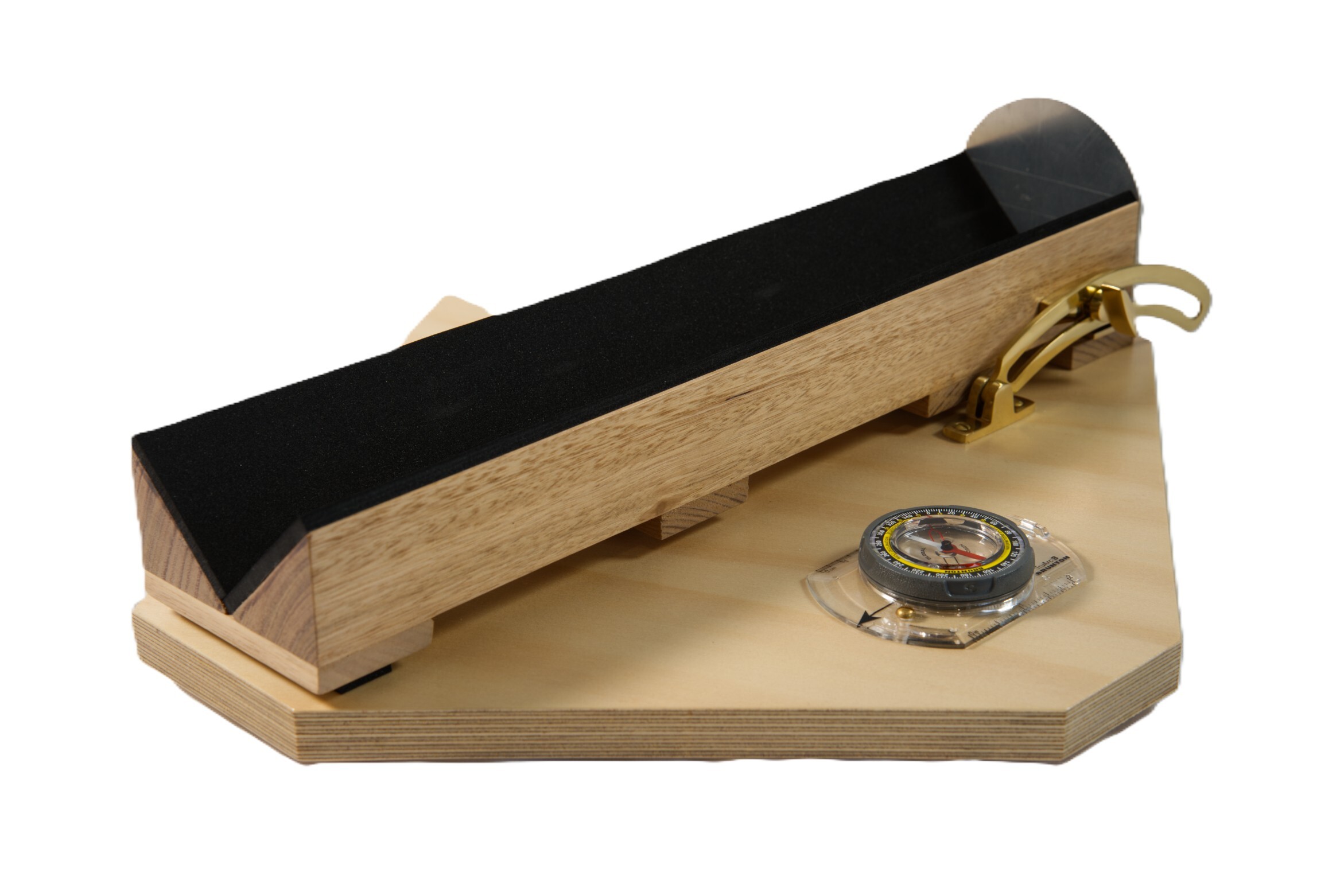

Measure core structures with the core placed in the same situation that it was in the ground with the Core Orientation Device.

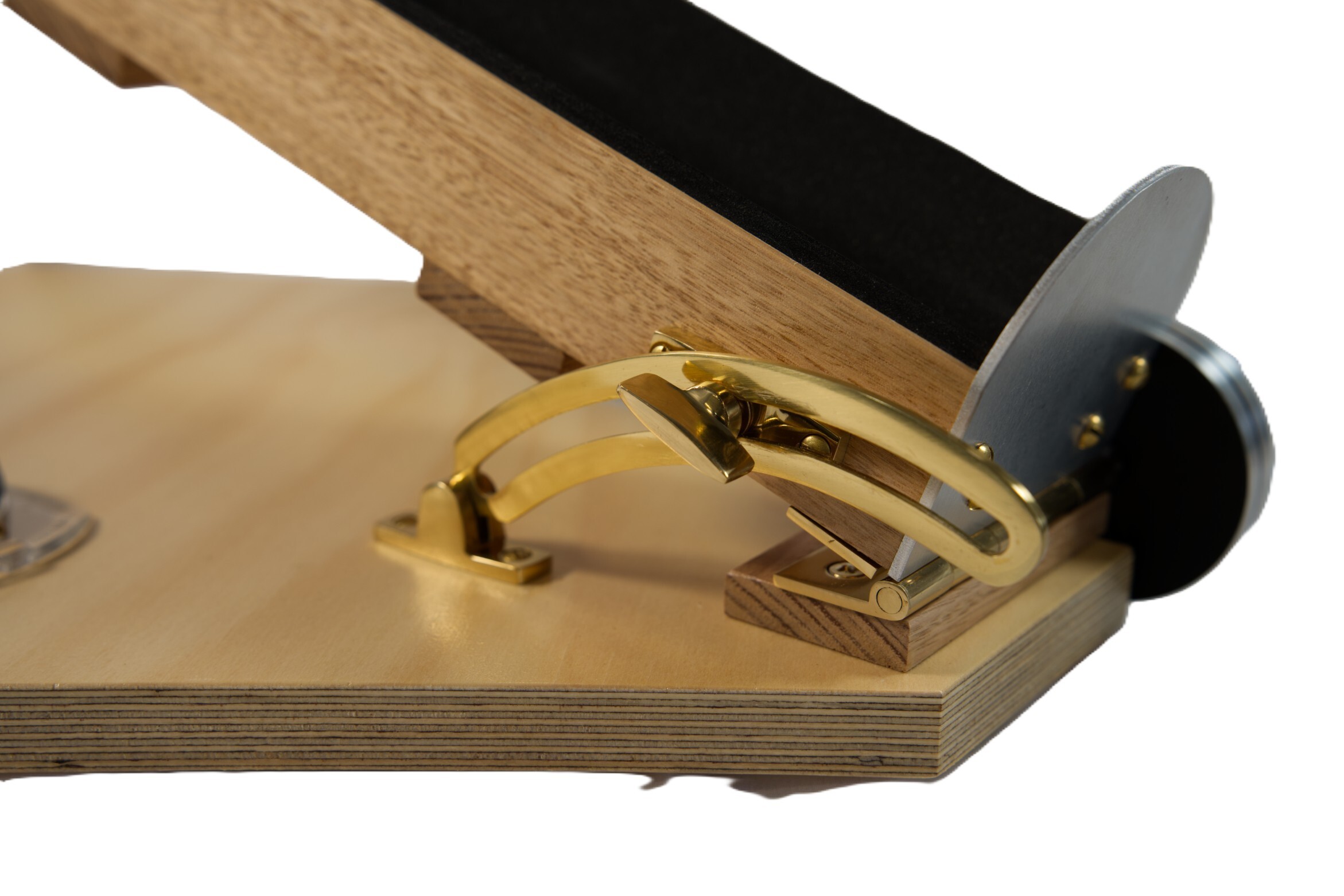

Our core orientation device was developed to allow users to measure all relevant core structures with the core placed in the same situation that it was in the ground. The inbuilt Brunton TruArc 3 Base Plate compass provides a bearing so that you can situate the device with the same heading as the azimuth of the core, while the inbuilt protractor allows the core to be placed on its original incline.

KEY FEATURES

• High-quality non-ferrous brass fittings
• Hand-built in West Australia from durable marine plywood

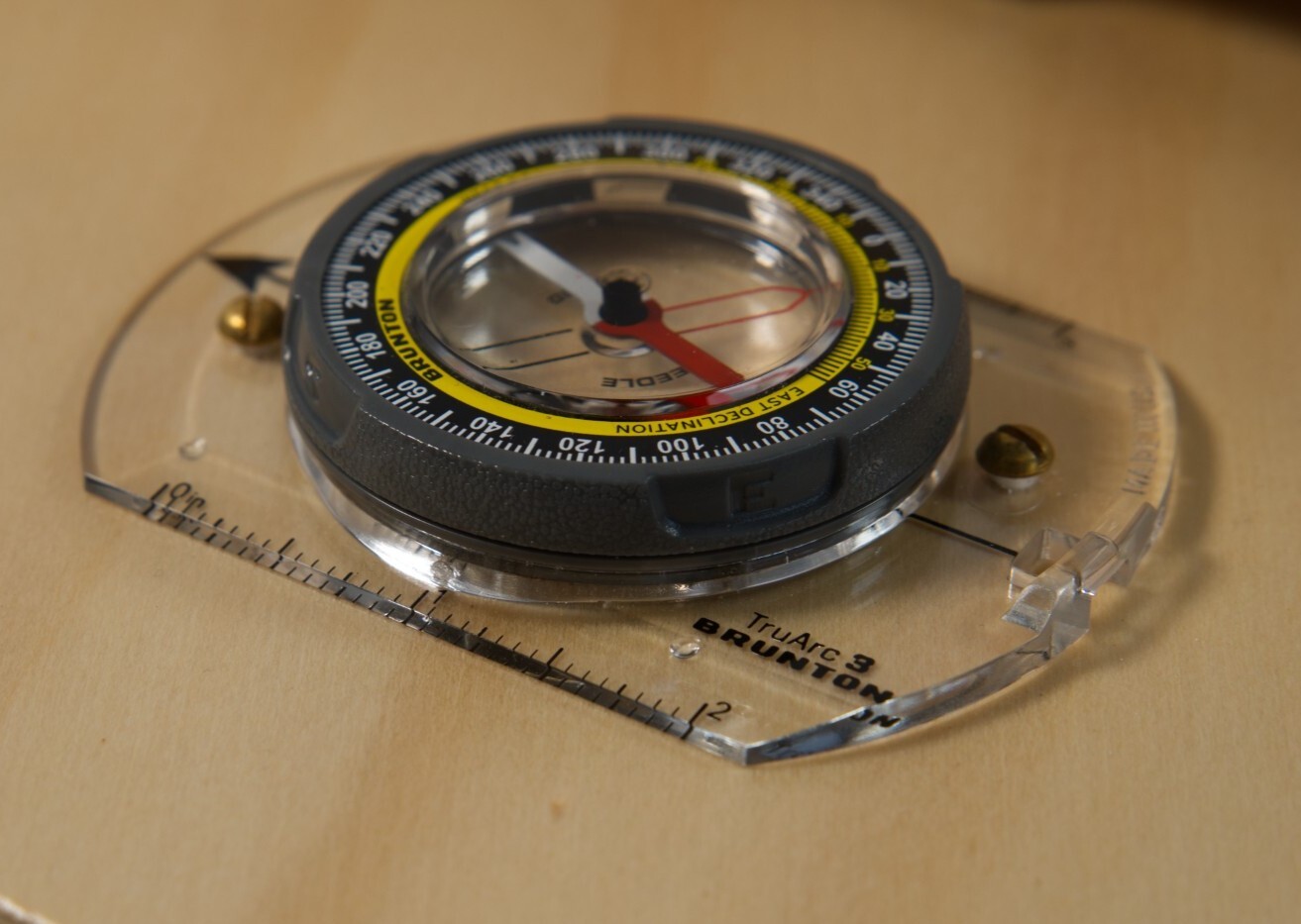

• Inbuilt Brunton TruArc 3 With Adjustable Declination & Bezel

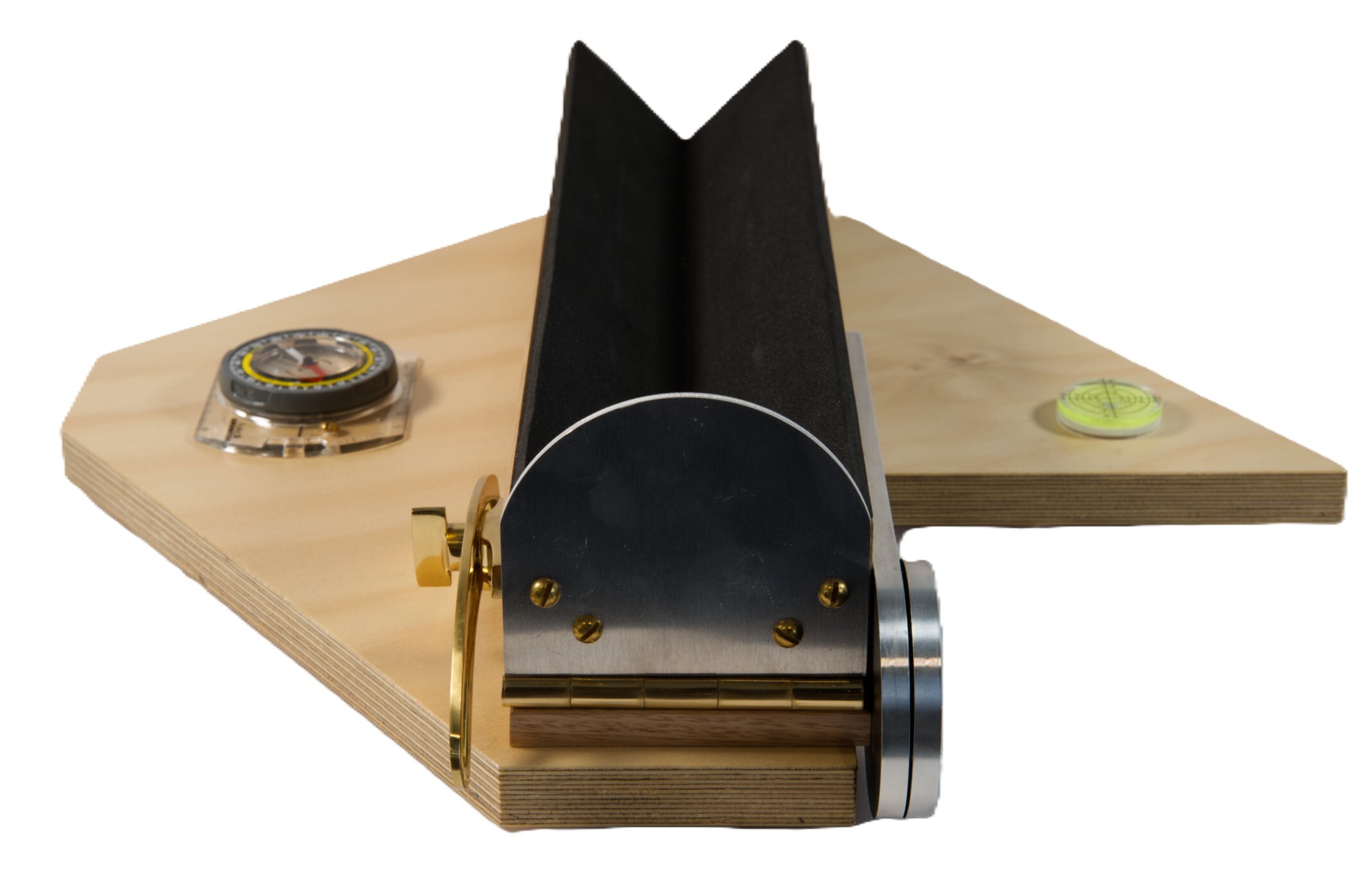

• Accepts all core diameters from BQ to PQ
• Can accept half core
• Housed in a rugged heavy-duty lockable case with foam

Want to figure out how to set up and use a Core Orientation Device (Rocket Launcher)?

Click to read more
